| 圖 片 | 編 號 | 位 置 | 品名尺寸 | 適用機種 | 原廠編號 |
|---|---|---|---|---|---|
 |
CH512 | Lower | 不銹鋼下眼模座 Die Guide Holder |
MW53W71K | |
 |
CH511 | Lower | 不銹鋼下眼模總成 Lower Dies Block |
MW53W71K | |
 |

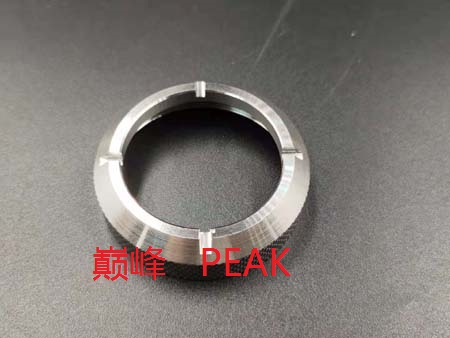

CH823 | 不锈钢铁环 60 |
|||
 |
CH401-4 | Lower | 不锈钢间隔环 | ||
 |
MCH507G | 庆鸿自动穿线眼模座整套45*55*57.2t（AWT） | 庆鸿 | ||
 |
MCH512G | 庆鸿不锈钢下眼模座57*72*54t | |||
 |
CH907 | 鉅鵬機下機頭蓋板45*33*12T | 鉅鵬機 | ||
 |
AMS851-1 | 钜鹏下眼膜固定座 | 钜鹏 | ||
 |
AMS851 | 钜鹏下给电子座 | 钜鹏 | ||
 |
AMS851-2 | 钜鹏下机头喷水盖 | 钜鹏 | ||
 |
AMS860 | 钜鹏下机头收线框 | 钜鹏 | ||
 |
CH811 | 出線輪齒輪 Gear Of Roller |
|||
 |
CH806 | 出線輪副軸心用螺帽 M8*0.75P For CH415 |
|||
 |
CH420 | 軸心不銹鋼軸承 BEARINGS(SUS) For CH416 |
MAWT375G | ||
 |
CH419 | 出線輪不銹鋼軸承 BEARINGS(SUS) For CH415 |
|||
 |
CH418 | Lower | 引線輪不銹鋼軸承膠蓋 BEARINGS(SUS) For CH407 |
||
 |
CH417 | Lower | 引線輪不銹鋼軸承 BEARINGS(SUS) For CH407 6000ZZ |
||
 |
CH416 | Feed Section |
主出線輪軸心 Shaft For M404 |
MW53A06D | |
 |
CH415 | Feed Section |
副出線輪軸心 Shaft For M403 |
MW53A07D | |
 |
CH413 | Upper | 張力輪 Urethane Tension Roller 150Ø*10Ø*31L |
MW53A39C | |
 |
CH412 | Lower | 下機頭陶瓷收線輪 Lower Roller (Ceramic) |
AMS | |
 |
CH411 | 導線輪 Guide Roller |
|||
 |
CH410 | Lower | 下機頭陶瓷收線輪 Lower Roller (Ceramic) 60L |
||
 |
CH409 | Lower | 下機頭陶瓷收線輪 Lower Roller (Ceramic) 50L |
||
 |
CH408 | Lower | 下機頭引線輪 Lower Roller (SUS) 56L 60L |
MAWT375G |
